Product Summary

The ADG659YRUZ is a low voltage, CMOS analog multiplexer comprising eight single channels and four differential channels respectively. The ADG659YRUZ switches one of four differential inputs to a common differential output as determined by the 2-bit binary address lines A0, A1. An EN input on the device is used to enable or disable the device. When disabled all channels are switched off.

Parametrics

ADG659YRUZ specifications: (1)Sw/Mx Function x #: (4:1) x 2; (2)Ron (Ohms): 45Ohms; (3)Ron Match (Ohms): 1.3Ohms; (4)Max Analog Signal Range: Vss to Vdd.

Features

ADG659YRUZ features: (1)±2 V to ±6 V Dual Supply; (2)+2 V to +12 V Single Supply; (3)Automotive Temperature Range -40℃ to +125℃; (4)<1 nA Leakage Currents; (5)50 O On Resistance; (6)Rail - to - Rail Switching Operatin.

Diagrams

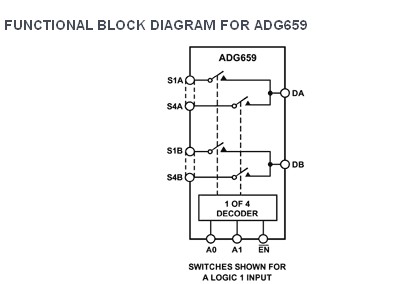

ADG659YRUZ Functional Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADG659YRUZ
ADG659YRUZ

IC MULTIPLEXER DUAL 4X1 16TSSOP
Data Sheet
0-1: $2.65
1-10: $2.36
10-100: $1.94
100-250: $1.75
250-500: $1.57
500-1000: $1.32
1000-2500: $1.26
