Product Summary
The 17-21/W1D-ANPHY/3T is a 0805 Package White Chip LED. The 17-21/W1D-ANPHY/3T SMD Taping is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. Besides, lightweight makes them ideal for miniature applications. etc. Applications of the 17-21/W1D-ANPHY/3T are Automotive: backlighting in dashboard and switch, Telecommunication: indicator and backlighting in telephone and fax, Flat backlight for LCD, switch and symbol and General use.
Parametrics
17-21/W1D-ANPHY/3T absolute maximum ratings: (1)Reverse Voltage VR: 5 V; (2)Forward Current IF: 25 mA; (3)Operating Temperature Topr: -40 ~ +85℃; (4)Storage Temperature Tstg: -40 ~ +90℃; (5)Electrostatic Discharge(HBM) ESD: 150 V; (6)Power Dissipation Pd: 110 mW; (7)Peak Forward Current (Duty 1/10) IFP: 100 mA; (8)Soldering Temperature Tsol: 260℃ for 10 sec.
Features
17-21/W1D-ANPHY/3T features: (1)Package in 8mm tape on 7〞diameter reel; (2)Compatible with automatic placement equipment; (3)Compatible with infrared and vapor phase reflow solder process; (4)Mono-color type; (5)Pb-free; (6)The product itself will remain within RoHS compliant version.

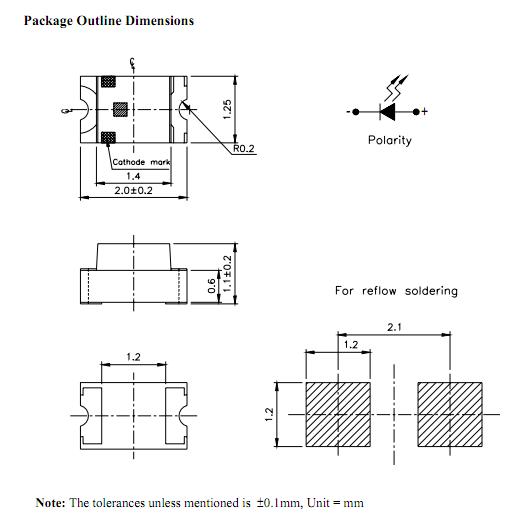

Diagrams
